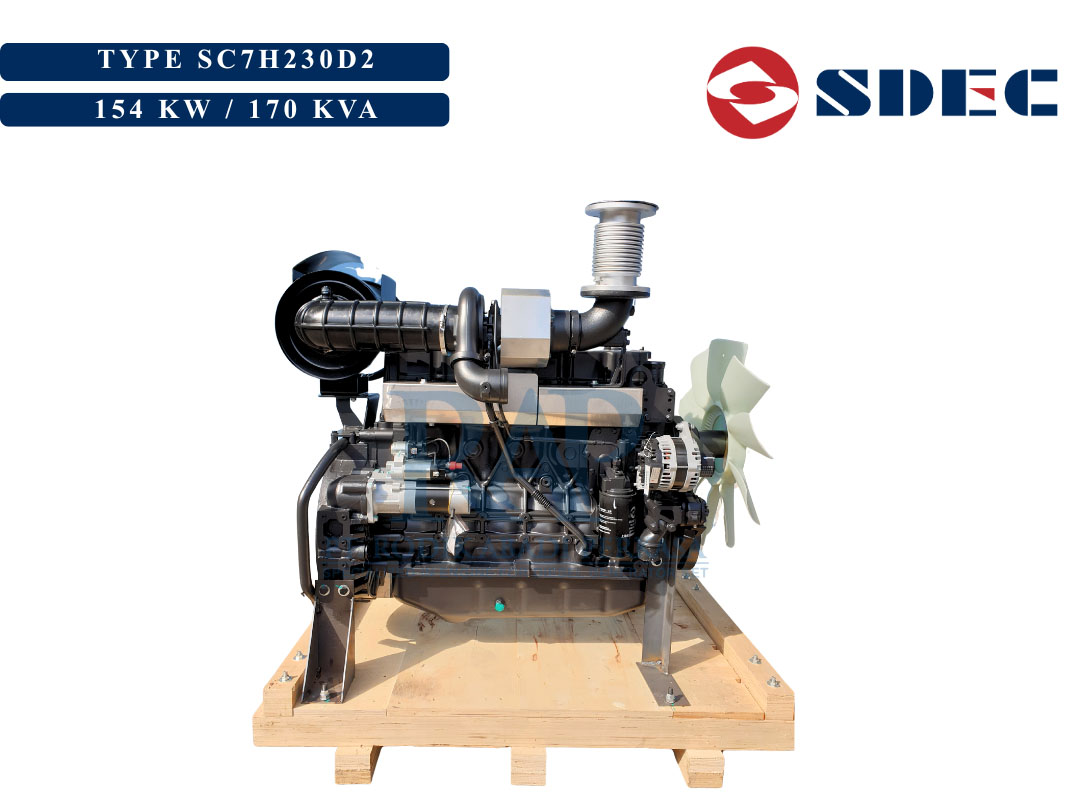

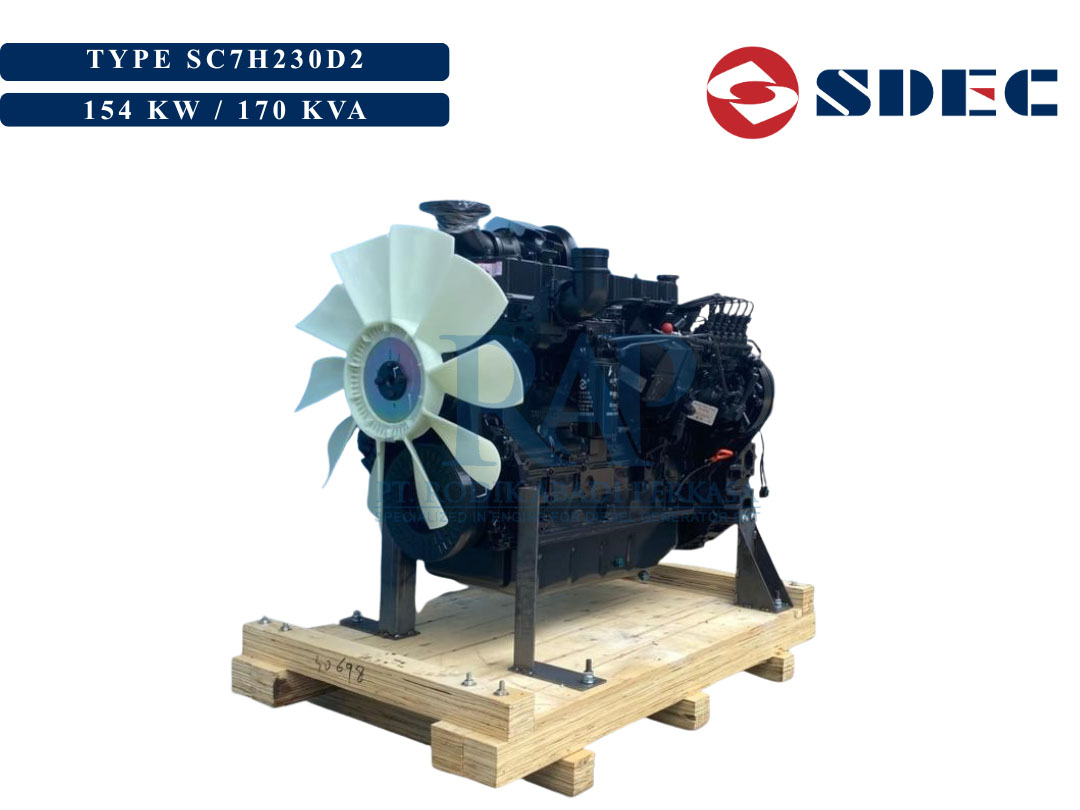

SDEC 154 KW – Diesel Engine
SDEC 154 KW – Diesel Engine
| Diesel Engine Specifications | |
| Type Engine | SC7H230D2 |
| Prime | 154 kW |
| Standby | 170 kW |
| Speed | 1500 Rpm |
| Induction System | Turbocharged |
| Combustion Type | Direct Injection |
| Number of Cylinder | 6 |
| Bore x Stroke | 105×124 mm |
| Displacement (L) | 6.44 L |
| Compression Ratiio | 16 : 1 |
| Dry Weight | 600 kg |
| Dimensions Engine | 1343 x 741 x 1267 mm |
| Flywheel Housing | SAE NO.3 / 11.5 |
| Cooling Method |
Fresh Water Forced Circulation
|
| Water Capacity | 9.6 L |
| Oil Pan Capacity | High : 17.5 L Low : 15 L |
| Battery Voltage | 24 V |
| Fuel Cons (L/h) 100% Load | 36.8 L |
| Rotation |
Counter Clock Viewed Form Flywheel
|
| Firing Order | 1-5-3-6-2-4 |
