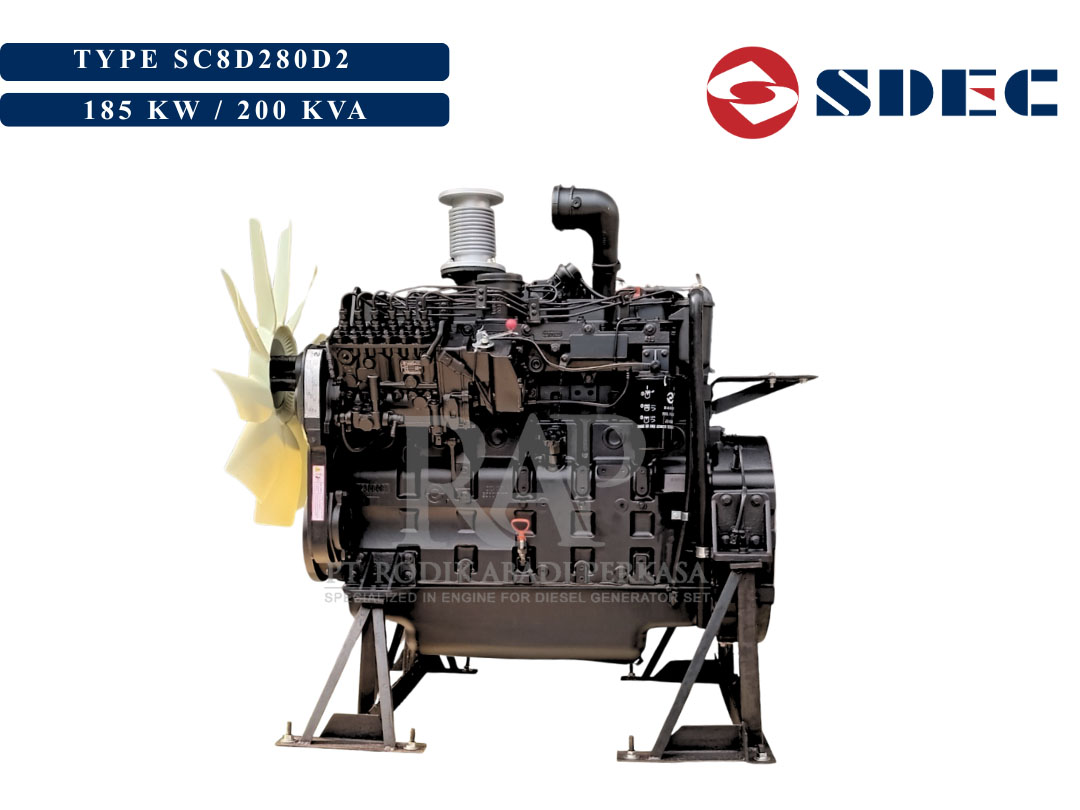

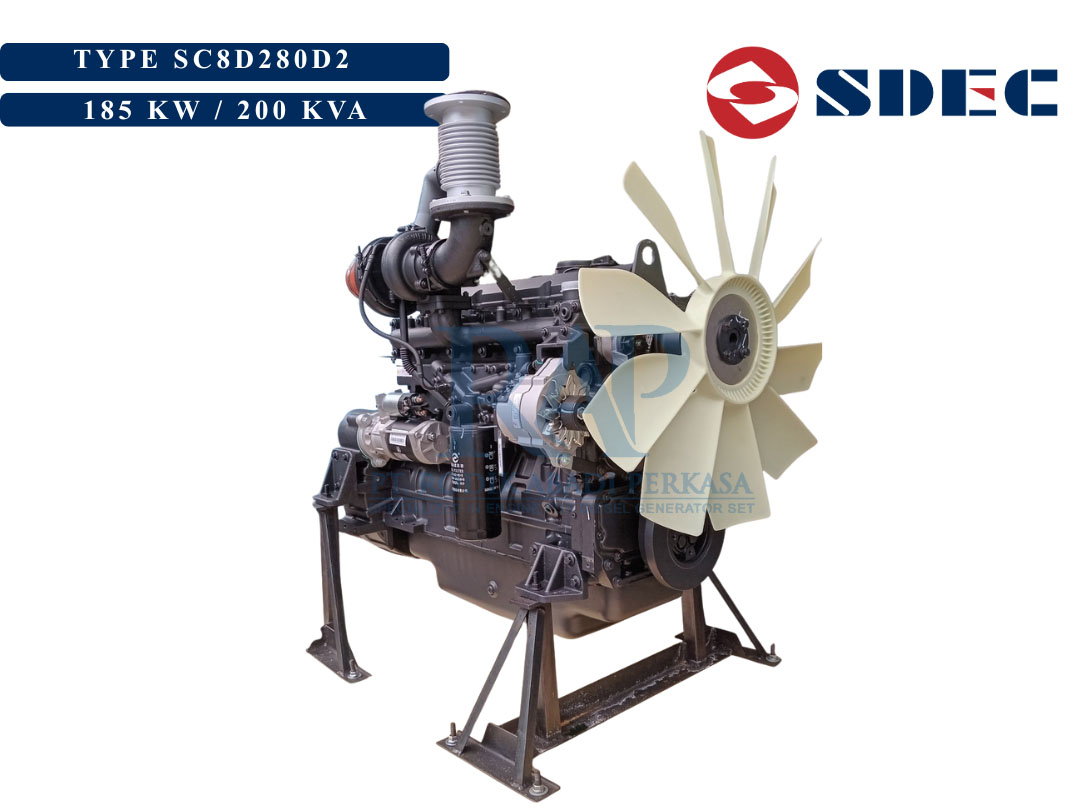

SDEC 185 KW – Diesel Engine
SDEC 185 KW – Diesel Engine
| Diesel Engine Specifications | |
| Type Engine | SC8D280D2 |
| Prime | 185 kW |
| Standby | 204 kW |
| Speed | 1500 Rpm |
| Induction System |
Turbocharged W/ Aftercooler
|
| Combustion Type | Direct Injection |
| Number of Cylinder | 6 |
| Bore x Stroke | 114×135 mm |
| Displacement (L) | 8.27 L |
| Compression Ratiio | 18 : 01 |
| Dry Weight | 740 kg |
| Dimensions Engine | 1472 x 762 x 1240 mm |
| Flywheel Housing | SAE NO.2 / 11.5 |
| Cooling Method |
Fresh Water Forced Circulation
|
| Water Capacity | 12 L |
| Oil Pan Capacity | High : 19 L Low : 15 L |
| Battery Voltage | 24 V |
| Fuel Cons (L/h) 100% Load | 44.9 L |
| Rotation |
Counter Clock Viewed Form Flywheel
|
| Firing Order | 1-5-3-6-2-4 |
