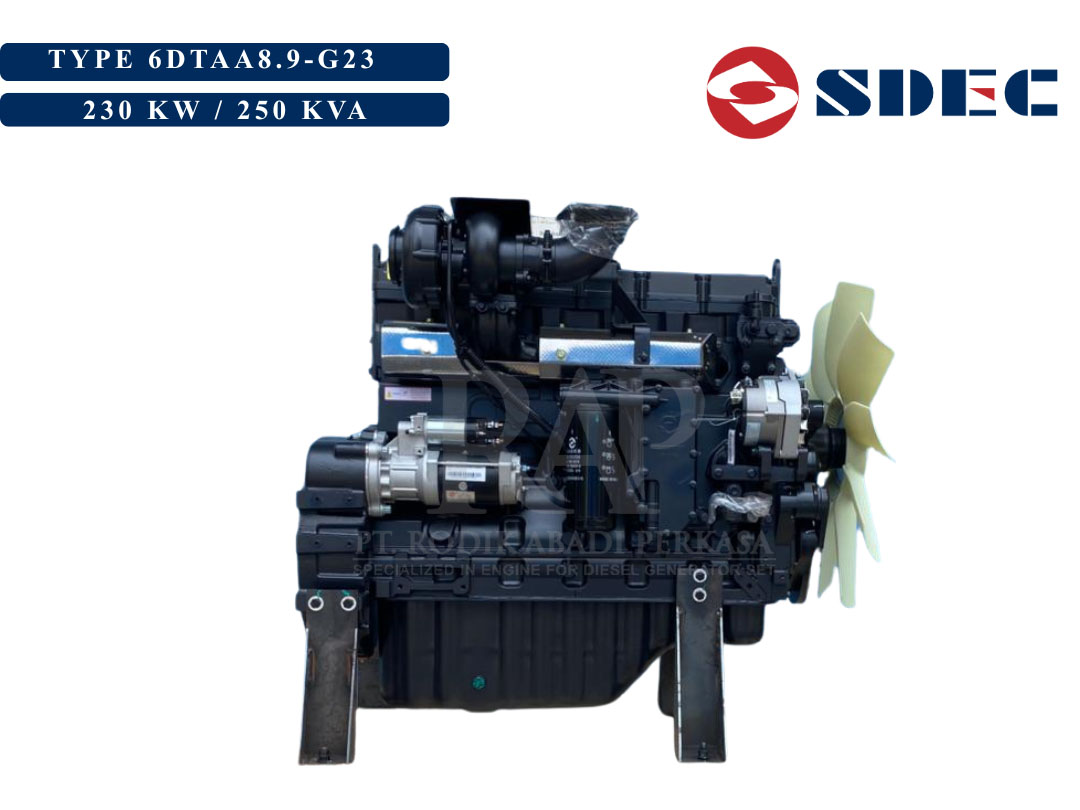

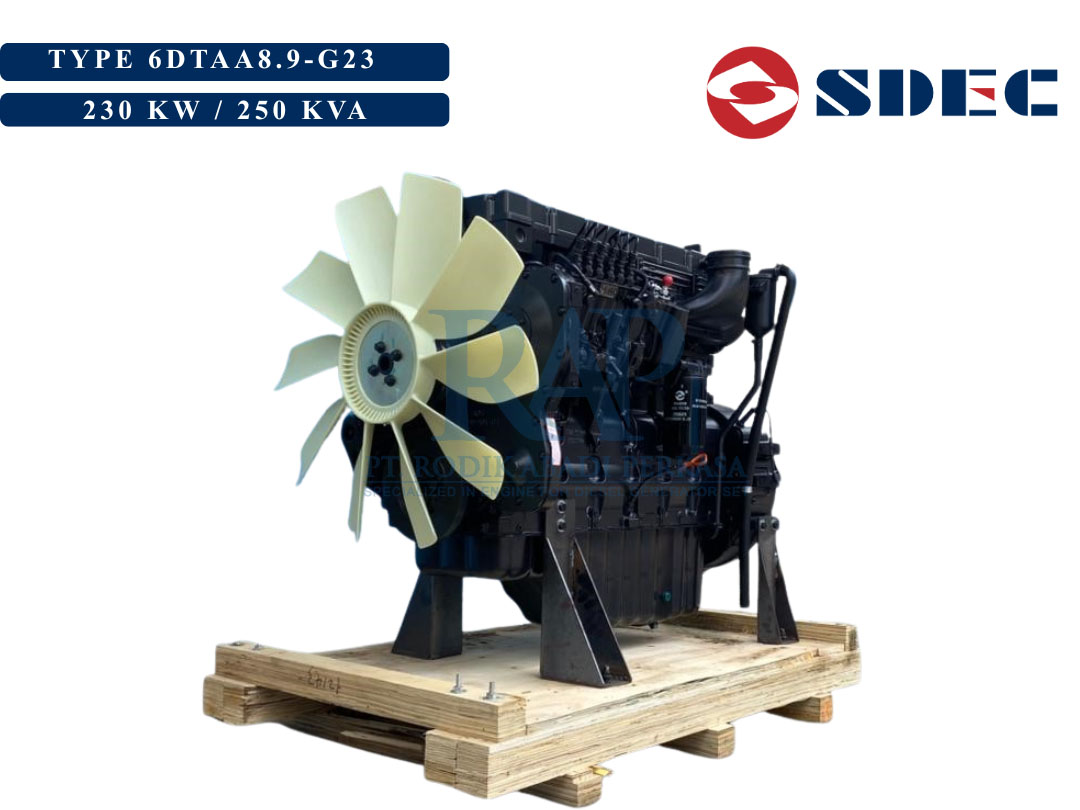

SDEC 230 KW – Diesel Engine
SDEC 230 KW – Diesel Engine
| Diesel Engine Specifications | |
| Type Engine | 6DTAA8.9-G23 |
| Prime | 230 kW |
| Standby | 253 kW |
| Speed | 1500 Rpm |
| Induction System | Turbocharged |
| Combustion Type | Direct Injection |
| Number of Cylinder | 6 |
| Bore x Stroke | 114×144 mm |
| Displacement (L) | 8.82 L |
| Compression Ratiio | 16.5 : 01 |
| Dry Weight | 900 kg |
| Dimensions Engine | 1493 x 792 x 1309 mm |
| Flywheel Housing | SAE NO.2 / 11.5 |
| Cooling Method |
Fresh Water Forced Circulation
|
| Water Capacity | 12 L |
| Oil Pan Capacity | High : 25 L Low : 22 L |
| Battery Voltage | 24 V |
| Fuel Cons (L/h) 100% Load | 55.1 L |
| Rotation |
Counter Clock Viewed Form Flywheel
|
| Firing Order | 1-5-3-6-2-4 |
