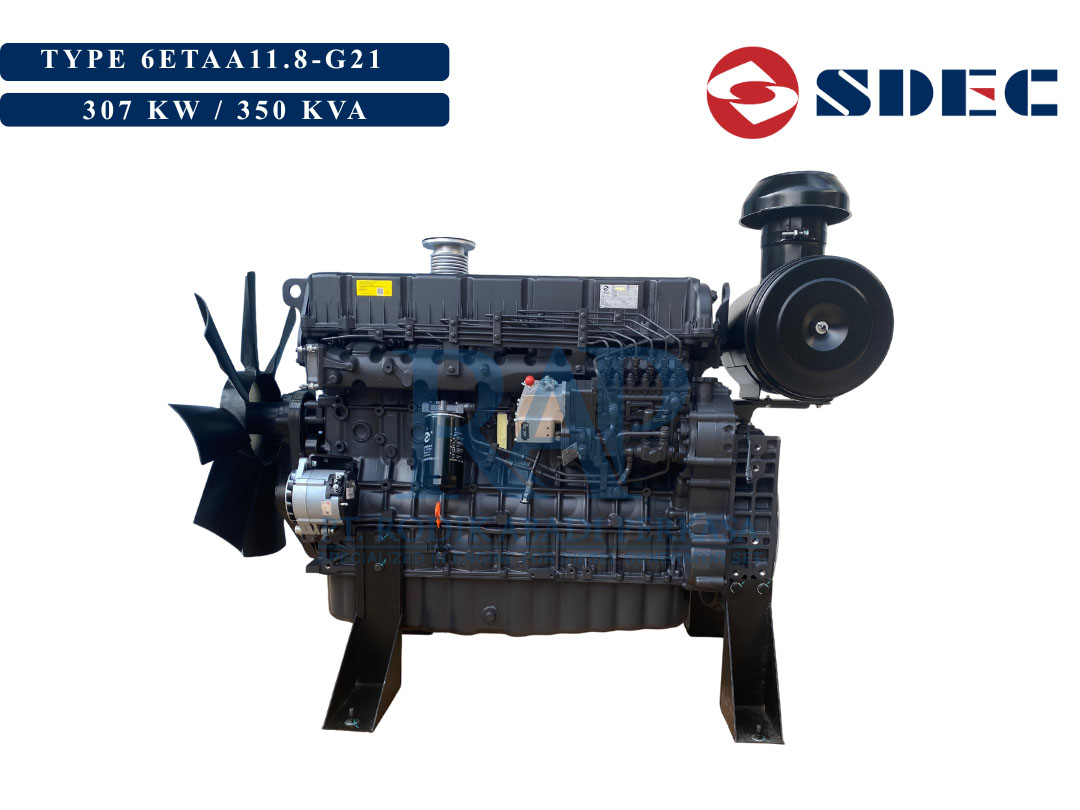

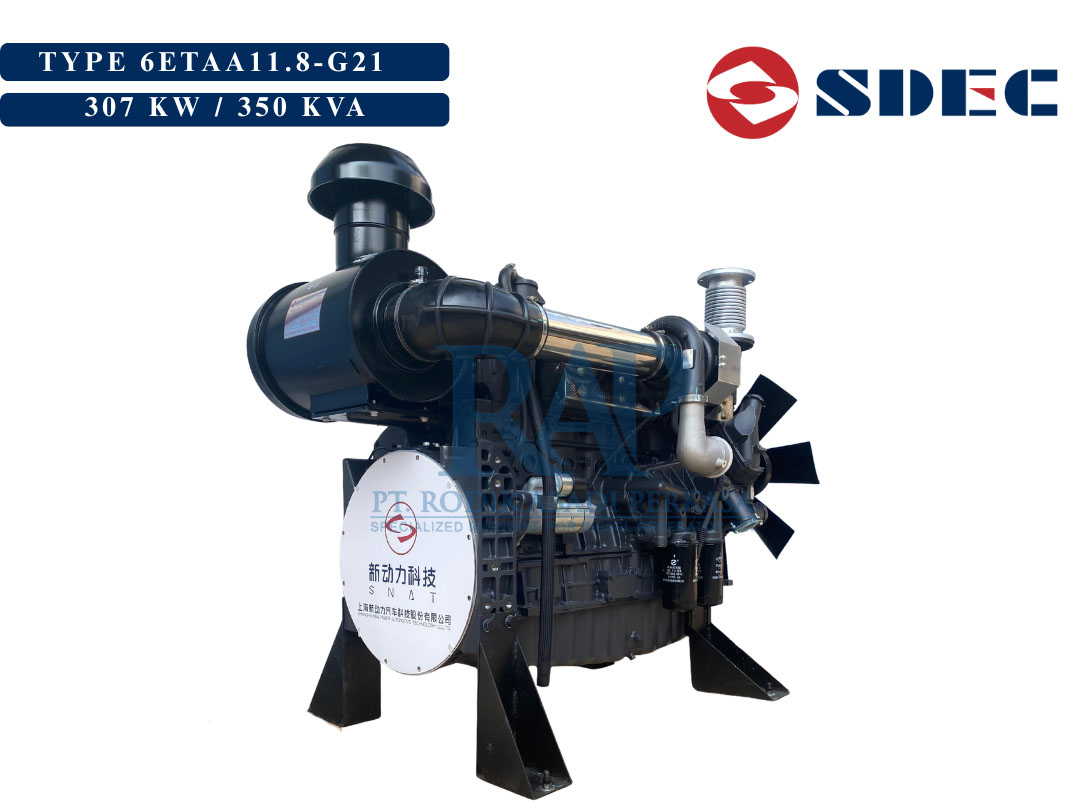

SDEC 307 KW – Diesel Engine
SDEC 307 KW – Diesel Engine
| Diesel Engine Specifications | |
| Type Engine | 6ETAA11.8-G21 |
| Prime | 307 kW |
| Standby | 338 kW |
| Speed | 1500 Rpm |
| Induction System | Turbocharged |
| Combustion Type | Direct Injection |
| Number of Cylinder | 6 |
| Bore x Stroke | 128×153 mm |
| Displacement (L) | 11.8 L |
| Compression Ratiio | 17 : 1 |
| Dry Weight | 1164 kg |
| Dimensions Engine | 1787 x 912 x 1304 mm |
| Flywheel Housing | SAE NO.1 / 14 |
| Cooling Method |
Fresh Water Forced Circulation
|
| Water Capacity | 23.2 L |
| Oil Pan Capacity | High : 41 L Low : 33 L |
| Battery Voltage | 24 V |
| Fuel Cons (L/h) 100% Load | 73.3 L |
| Rotation |
Counter Clock Viewed Form Flywheel
|
| Firing Order | 1-5-3-6-2-4 |
